Smart Parking

Smart Parking is a radar sensor device that allows the detection of parking availability indoors and outdoors.

  • Best accuracy by radar detection
  • IP68 and IK10 protection fully certified
  • LoRaWAN protocol
Smart Parking

Features

Product features

Smart Parking Sensor Technolgy is a radar sensor device that allows the detection of parking availability indoors and outdoors.

  • Wireless detection of parking spot occupancy.
  • Best accuracy in the market: radar and magnetic technology combination.
  • IP68 and IK10 protection and fully certified (CE and FCC).
  • LoRaWAN communication protocol.
  • Over the air set up.
  • Three ways of installation (on surface, buried, semi-buried).
  • Almost zero maintenance needed.
PARKING DEVELOPMENT

Elements and models

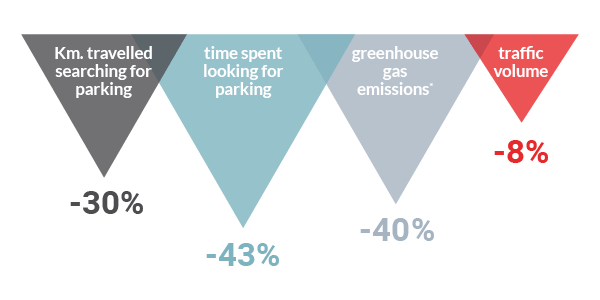

  1. Smart parking benefits (reduces fuel, pollution, traffic, time…)
  2. Smart parking applications (cities, hospitals, public areas, malls, universities, sports centers
  3. Additional revenues of smart parking technology in urban and shopping areas. Having real-time information about parking occupancy:
  • Increases parking revenues by up to 35%.
  • Avoids parking violations on disabled and loading / unloading areas.
  • Monitors real use of restricted areas: only for taxis, special services, authorities…
  • Improves driver (and customer) experience reducing time loss.
  • Helps to learn patterns of behaviour to adapt traffic and surveillance resources for better mobility.
Smart Parking: Elements & Models

Dual detection system

Libelium Smart Parking benefits from 2 different detection systems: Radar and Magnetic.

Greater precision, improved detection and stability performance: 99% accuracy.

Smart Parking: Elements & Models
Radar Infra-red Magnetic
Reliability against nearby vehicle movement
Reliability against nearby parked vehicles
Reliability against electromagnetic interferences
Reliability in any lighting scenario
Stability during long-duration vehicle stays
Do not need an aperture in enclosure
Immunity against dirt or dust on enclosure

Wireless communication protocol: LoRaWAN

Available for Europe, US, Latam, Australia and Asia Pacific.

Nodes provisioning in the LoRaWAN network server at any one time including default time settings and unique LoRaWAN identifyers and keys.

Configuration via Smart Devices App (Java desktop application).

Two possible scenarios:

  • Libelium Cloud Service to forward data to third party cloud platforms
  • Customer Server to parse data on your own server
Smart Parking: Elements & Models

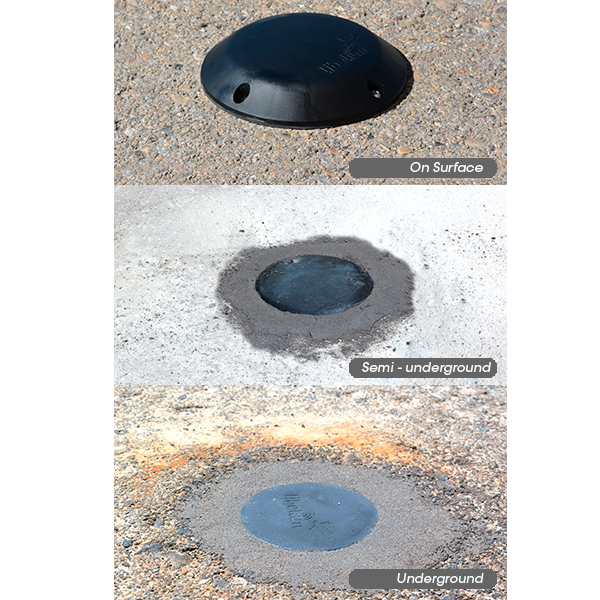

Triple Installation Deployment

The enclosure is versatile because it allows 3 types of installation:

  • On surface
  • Semi – underground
  • Underground
Smart Parking: Elements & Models
On-surface Semi-underground Underground
Type of enclosure Vaulted Vaulted Flat
Presence of node over the ground Full node(40.25 mm) Part of (~6 mm) None (0 cm)
Rain inmunity Partial
Puddle inmunity Detection may fail if puddle appears
Vandalism/Robbery inmunity Medium High High
Snowplow inmunity No Possible
Installation process Fast and easy Special tools needed Special tools needed
Tools needed Normal drill Industrial, big crown drill. Epoxy Industrial, big crown drill. Epoxy
Can be dismantled for maintenance?

Robust waterproof IP68 enclosure

The device is protected inside a small and extremely tough enclosure.

It is IP68 rated, which means it remains waterproof even submerged in water. Each node is provided with professional screws and anchors, resistant to tampering and vandalism.

Besides, it is certified for IK10, the maximum rating too for external mechanical impacts: protected against 20 joules of impact (the equivalent to the impact of a 5 kg mass dropped from 400 mm above the impacted surface).

Easily reset by passing the magnet over the node. Wide range of temperature: -20ºC to 65ºC.

Smart Parking: Elements & Models

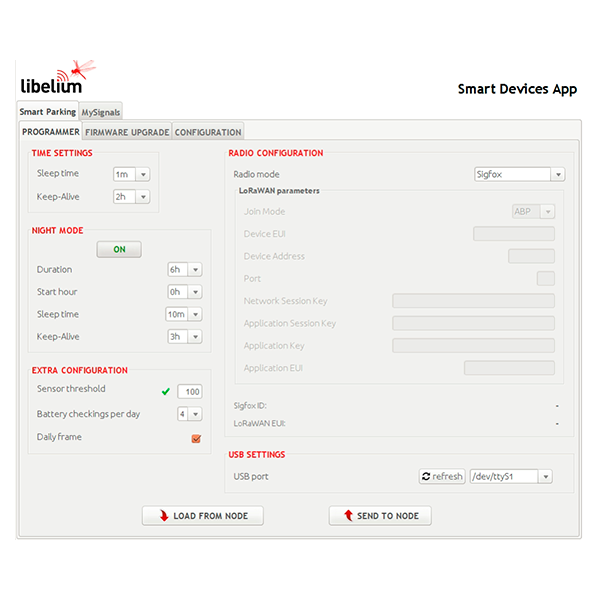

0-minute provisioning process

The user just needs to setup some basic parameters because it comes already programmed from factory.

Nodes come pre-configured and securized with individual keys. The user doesn’t need to open the nodes: 0 configuration required. Final configuration of the nodes can be done on the Remote Configuration Form in bulk.

For advanced radio settings, the user can always use the Smart Devices App: full configuration in under 1 minute.

Smart Parking: Elements & Models

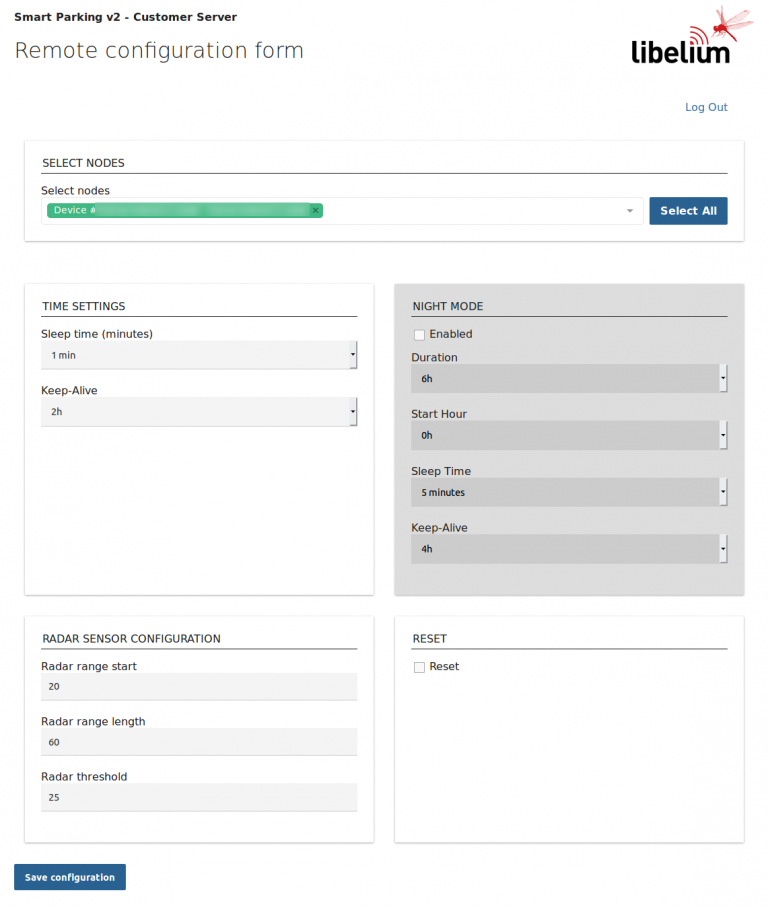

Remote Setup from the Cloud

After the nodes have been installed, the user remains in control thanks to the Remote Setup system: the user can reconfigure all the parameters easily from the Cloud.

Over-the-air set up via “remote configuration form”.

To easily update settings of each node such as sleep time, keep-alive time, night-mode…

Remotely update via LoRaWAN downlink radio packets.

Smart Parking: Elements & Models

Battery Life

Libelium Smart Parking was created to last. Apart from the robust enclosure, the electronic design focus on being low-power and the battery has a huge capacity of 10,400 mA·h.

Besides, the Night Mode saves energy during hours of low rotation.

All this can lead to 10+ years of uninterrupted operation.*

(*) Battery Life depends on parameters such as the number of packets sent per day, the distance from the nodes to the Base Station, etc.

Smart Parking: Elements & Models

Certified

The device is fully certified according to CE, FCC, IP68 (EN 60529) and IK10 (EN 50102). This is a real product ready for the main markets. Get here the official Product Compliance Documentation.

Smart Parking: Elements & Models

Smart Parking Benefits

  1. Parking Slots
    • Optimization of capacity
    • Special permits
    • Online payments
    • Loading / unloading areas
    • Taxis / public transport
    • Disabled
    • Parking guided systems
  2. Public Areas
    • Emergencies /availability
    • Revenues
    • Special permits detection
    • Disabled parking places
    • Electric vehicle recharging places
  3. Roads
    • Congestion
    • CO2
    • Noise
  4. Malls
    • Pricing strategies
    • Time spent looking for a parking space
Smart Parking: Elements & Models
