Plug & Sense!

Plug & Sense! Is the encapsulated version of Waspmote. This line allows the easy deployment of Internet of Things networks in a scalable way, ensuring minimum maintenance costs.

Easy configuration and installation
Robust waterproof enclosure
Worldwide certified

Features

The platform consists of a robust waterproof enclosure with specific external sockets to connect the sensors, the solar panel, the antenna and even the USB cable in order to reprogram the node. It has been specially designed to be scalable, easy to deploy and maintain.

10 models. More than 160 sensors.
Easy configuration: add or change a sensor probe in seconds
Robust waterproof IP65 enclosure
Solar powered external panel option
Radios available: 802.15.4, Zigbee, 868 MHz, 900 MHz, WiFi, 4G, Sigfox and LoRaWAN
Over the air programming (OTAP) of multiple nodes at once (via WiFi or 4G radios)
Special holders and brackets ready for installation in street lights and building fronts
Graphical and intuitive interface Programming Cloud Service
Built-in, 3-axes accelerometer
Optional industrial protocols: RS-485, Modbus, CAN Bus
Optional External Battery Module
External SIM connector for the 4G models
Fully certified: CE (Europe), FCC (USA), IC (Canada), ANATEL (Brazil), RCM (Australia), PTCRB (USA, cellular connectivity), AT&T (USA, cellular connectivity)

Technical Guide

Elements and Models

Smart Environment PRO

Smart Environment PRO enables the Air Quality Index (AQI) calculation, thanks to electro-chemical gas sensors providing extremely accurate ppm values and a high-end Particle Matter sensor.

Sensors:

Carbon Monoxide (CO) [Calibrated] (low concentrations)
Carbon Dioxide (CO₂) [Calibrated]
Molecular Oxygen (O₂) [Calibrated]
Ozone (O₃) [Calibrated]
Nitric Oxide (NO) [Calibrated] (low concentrations)
Nitric Dioxide (NO₂) [Calibrated]
Sulfur Dioxide (SO₂) [Calibrated] (high accuracy)
Ammonia (NH₃) [Calibrated] (low and high concentrations)

Methane (CH₄) [Calibrated] – and other combustible gases
Hydrogen Sulfide (H₂S) [Calibrated]
Particle Matter (PM1 / PM2.5 / PM10) – Dust Sensor
Temperature
Humidity
Atmospheric pressure
Luminosity (Luxes Accuracy) for Smart Lighting
Ultrasound (distance measurement)

TECHNICAL GUIDE

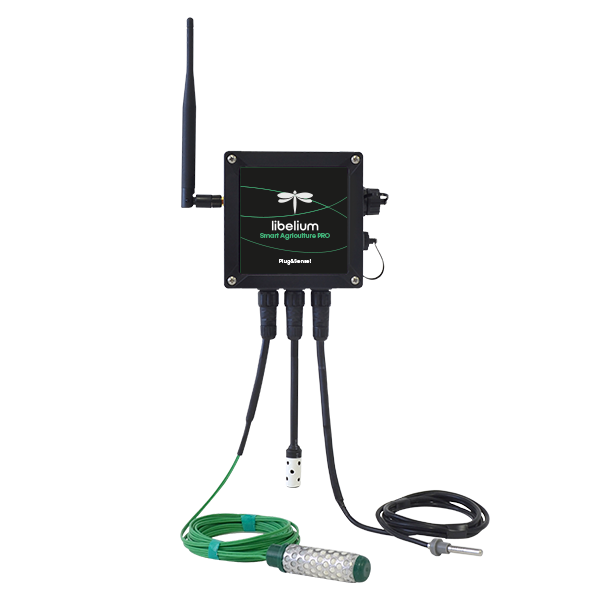

Smart Agriculture PRO

Smart Agriculture PRO is designed to perform vineyards monitoring for enhancing wine quality, selective irrigation on golf courses and conditions control in greenhouses, among others.

Sensors:

Soil moisture (3 depths)
Soil temperature
Leaf wetness
Solar radiation (PAR and UV)
Atmospheric pressure
Stem, truck and fruit diameter

Anemometer
Wind vane
Pluviometer
Air temperature
Air humidity
Luminosity (Luxes Accuracy) for Smart Lighting
Ultrasound (distance measurement)

TECHNICAL GUIDE

Smart Agriculture Xtreme

Smart Agriculture Xtreme is an evolution of our Agriculture line with a new selection of high-end professional sensors. It allows to monitor multiple environmental parameters involving a wide range of applications, from plant growing analysis to weather observation. There are sensors for atmospheric and soil monitoring and plants health. More than 20 sensors can be connected.

Sensors:

Non-contact surface temperature measurement SI-411
Leaf and flower bud temperature SF-421
Soil oxygen level SO-411 and SO-421
Solar radiation (shortwave, PAR and UV): SP-510, SQ-100x and SU-202
Air temperature, humidity and pressure

Volumetric water content and soil temperature TEROS 11
Conductivity, water content and soil temperature TEROS 12
Soil water potential TEROS 21
Soil water potential MPS-6
Vapor pressure, humidity, temperature and air pressure sensor probe (Meter ATMOS 14)
Leaf wetness Phytos 31
Trunk, stem and fruit diameter: DC3, DD-S and DF
Advanced Weather Stations
Luminosity (Luxes Accuracy)
Ultrasound (distance measurement)
4-20 mA type (generic input)
RS-232 type (generic input)
Datasol MET (photovoltaic uses)

TECHNICAL GUIDE

Smart Water PRO

Smart Water allows to monitor water quality in rivers, lakes and the sea.

Sensors:

pH
Oxidation-Reduction Potential (ORP)
Dissolved Oxygen (DO)
Conductivity
Temperature
Calibration Kits for the sensor probes available

TECHNICAL GUIDE

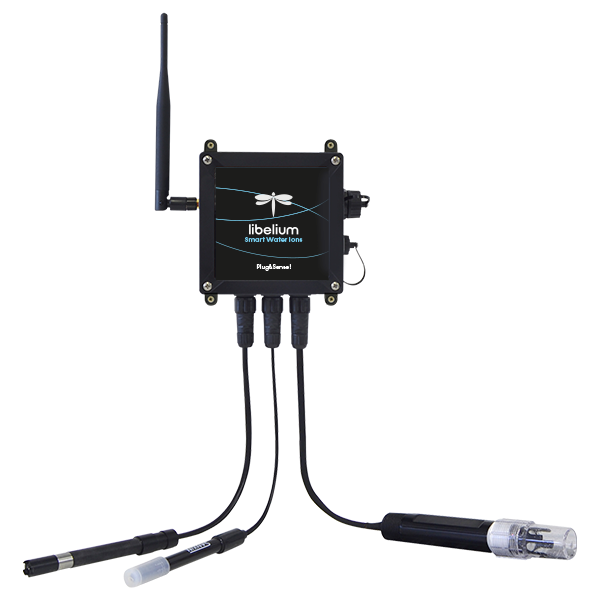

Smart Water Ions

Smart Water Ions specializes in measuring ions concentration enabling water quality control in rivers, lakes and the sea.

Sensors:

Ammonium (NH₄⁺)
Bromide (Br^–)
Calcium (Ca²⁺)
Chloride (Cl^–)
Cupric (Cu²⁺)
Fluoride (F^–)
Iodide (I^–)
Lithium (Li⁺)
Magnesium (Mg²⁺)
Nitrate (NO₃^–)

Nitrite (NO₂^–)
Perchlorate (CIO₄^–)
Potassium (K⁺)
Silver (Ag⁺)
Sodium (Na⁺)
Temperature
pH
Calibration Kits for the sensor probes available

TECHNICAL GUIDE

Smart Water Xtreme

Smart Water Xtreme includes top market performance sensors from the most prestigious manufacturers for applications such as potable water monitoring, fish farms management, chemical leakage detection, remote measurement of swimming pools and spas, and seawater pollution.

Sensors:

Optical dissolved oxygen and temperature (OPTOD)
Titanium optical dissolved oxygen and temperature(OPTOD)
pH, ORP and temperature (PHEHT)
Conductivity, salinity and temperature (C4E)
Inductive conductivity, salinity and temperature (CTZN)
Turbidity and temperature (NTU)
Suspended solids, turbidity, sludge blanket and temperature (MES5)
COD, BOD, TOC, SAC254 and temperature StacSense, 2 mm path
COD, BOD, TOC, SAC254 and temperature StacSense, 50 mm pathRadar level
VEGAPULS C21
Temperature, Humidity and Pressure
Luminosity (Luxes accuracy)
Ultrasound (outdoor IP67)

Manta+ 35A / Manta+ 35B
- Chlorophyll
- BGA
- Nitrate
- Ammonium
- Chloride
- Organic matter CDOM/FDOM
- Sodium
- Calcium
- Bromide
- Total Dissolved Gas TDG
- Rhodamine
- Crude oil
- Refined oil
- Flourescein
- Optical brighteners
- Tryptophan
Coliforms sensor Proteus
- BOD
- Coliform Counts
- COD
- DOC
- TOC
- Temperature
- pH/ORP
- Turbidity
- Optical Dissolved Oxygen
- Conductivity
- Pressure
- Fluorometers
- Ion-selective electrodes (ISE’s)
- TDG
- PAR

TECHNICAL GUIDE

Smart Cities PRO

The main applications for this Waspmote Plug & Sense! model are noise maps (monitor in real time the acoustic levels in the streets of a city [LeqA in dBA]), air quality, waste management, smart lighting, etc.

Sensors:

Noise / Sound Level Sensor (dBA / LeqA) + Calibration Tests
Particle Matter (PM1 / PM2.5 / PM10) – Dust Sensor
Carbon Monoxide (CO) [Calibrated] (low concentrations)
Carbon Dioxide (CO₂) [Calibrated]
Molecular Oxygen (O₂) [Calibrated]
Ozone (O₃) [Calibrated]
Nitric Oxide (NO) [Calibrated] (low concentrations)

Nitric Dioxide (NO₂) [Calibrated] (high accuracy)
Sulfur Dioxide (SO₂) [Calibrated] (high accuracy)
Ammonia (NH₃) [Calibrated] (low and high concentrations)
Methane (CH₄) [Calibrated] – and other combustible gases
Hydrogen Sulfide (H₂S) [Calibrated]
Temperature
Humidity
Atmospheric pressure
Luminosity (Luxes Accuracy) for Smart Lighting
Ultrasound (distance measurement)

TECHNICAL GUIDE

Smart Parking

Smart Parking allows to detect available parking spots by placing the node on the pavement. It works with a radar and a magnetic sensors which detect when a vehicle is present or not.

Sensors:

Radar and Magnetic field

Benefits:

LoRaWAN
Small and weatherproof enclosure (IP68)
On-surface, semi-underground and underground installation
Out-of-the-box operation (no programming needed and 0-minute provisioning)
Remote Manager
Extended battery lifetime

TECHNICAL GUIDE

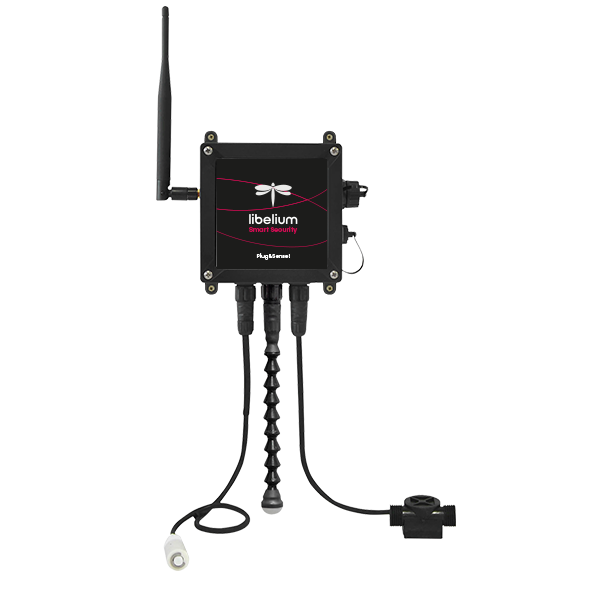

Smart Security

The main applications for this Waspmote Plug & Sense! configuration are perimeter access control, liquid presence detection and doors and windows openings. Besides, a relay system allows this model to interact with external electrical machines.

Sensors:

Relay to control external DC units (<30VDC, 1A)
IR human presence
Hall effect (doors and windows openings)
Water presence
Liquid level
Liquid flow
Temperature
Humidity
Atmospheric pressure
Luminosity (Luxes Accuracy) for Smart Lighting
Ultrasound (distance measurement)

TECHNICAL GUIDE

Industry 4.0

Plug & Sense! Industry 4.0, can operate in three types of situations. It can be used to connect any sensor to an existing industrial bus; it can also add wireless connectivity to wired buses or even connect industrial devices to the cloud. In any case, the aim is offering extremely flexibility and interoperability to any industry that need to send data from the productive process to the Internet with any wireless connectivity.

Technical Guide

Top Applications:

Water, electricity, oil & gas meters.
Liquid level sensors.
Liquid or gas flow sensors.
Temperature sensors.
Distance, presence and proximity sensors (“laser”, ultrasonic, photo-electric).
Weight sensors.
Pressure sensors.
Chemical sensors (CO2, O2, pH, etc).
Biological sensors (bacteria, etc).
Actuators (motors, pumps, PLCs, variable-frequency drives, relays, etc).

4-20 mA Current Loop

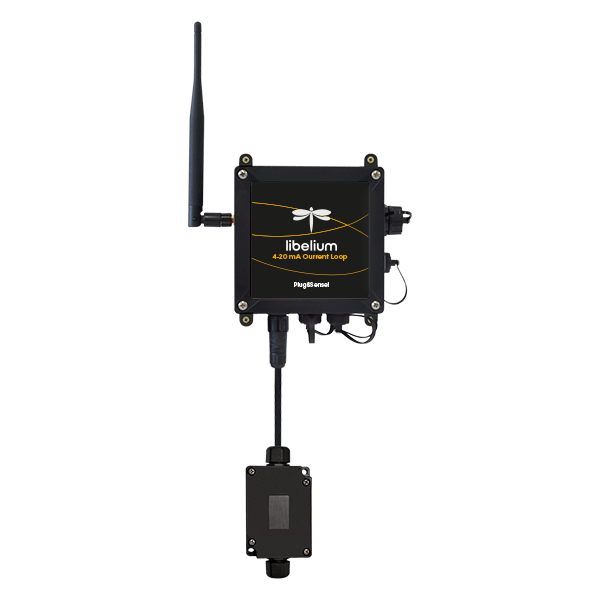

The applications for this Plug & Sense! model are focused on adding wireless connectivity to 4-20 mA devices and connecting them to the Cloud.

Applications:

Sensors and instruments
Remote transducers
Monitoring processes
Data transmission in industrial scenarios

The user can choose among a wide variety of standard sensors

TECHNICAL GUIDE

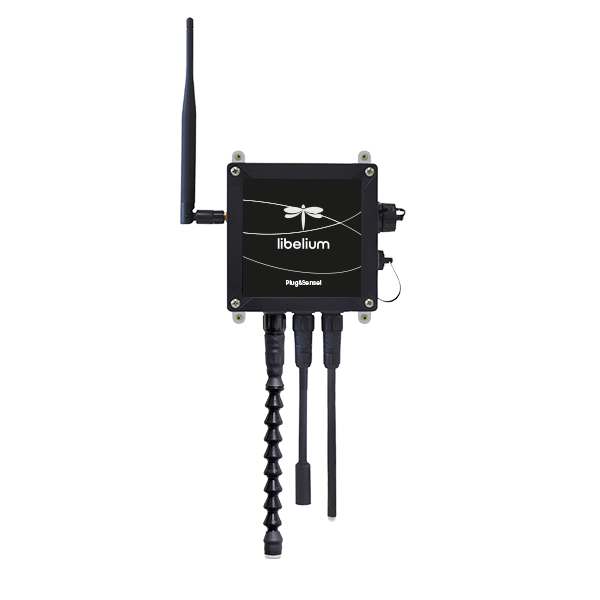

Ambient Control

Ambient Control allows to you to create basic environment parameters monitoring using the temperature, humidity, atmospheric pressure and luminosity sensors. As well as this, movement and vibrations can be measured by the internal accelerometer.

Sensors:

Temperature
Humidity
Atmospheric pressure
Luminosity (LDR)
Luminosity (Luxes Accuracy) for Smart Lighting

TECHNICAL GUIDE

Easy configuration

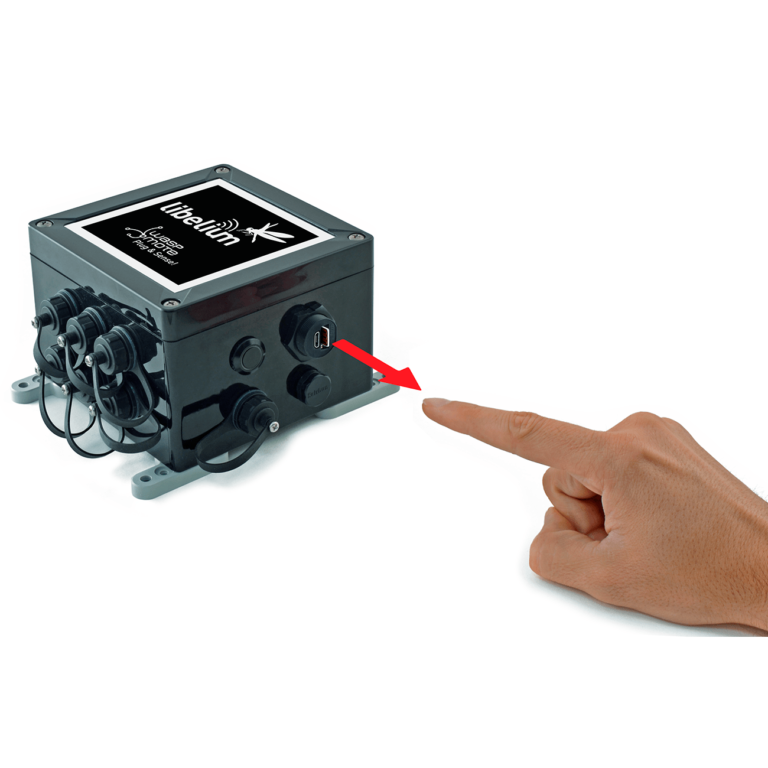

Change sensor probes in just seconds

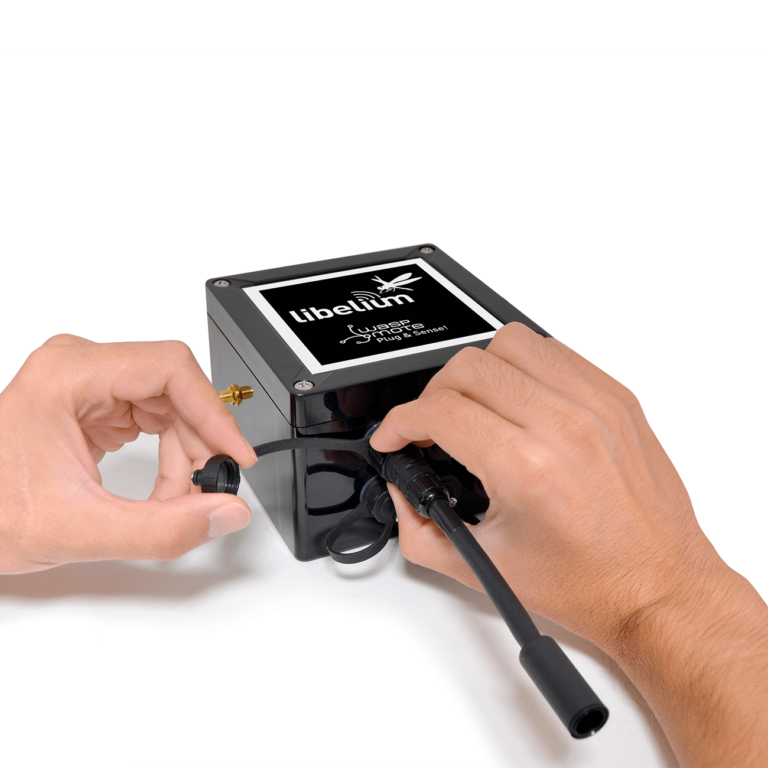

Sensor probes can be attached easily by just screwing them into the bottom sockets. This allows you to add new sensing capabilities to existing networks in just minutes. Sensor probes can be easily replaced to ensure the lowest maintenance cost of the sensor network. Discover more than 120 Sensors available!

Discover more than 120 Sensors available!

Fast installation

Outdoors materials provided

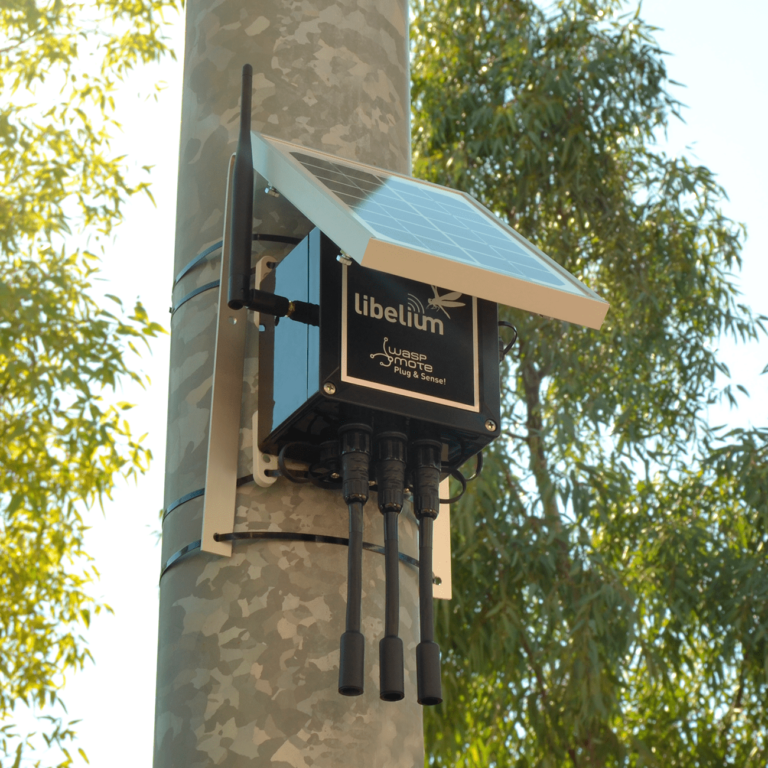

Waspmote Plug & Sense! counts with holders specially designed for outdoor installations in street-lights and building fronts.

Metal cable ties are provided to easily adjust the node to street light posts.

Installation can be done in minutes as you only need to tie the cables on the enclosure holders and then to the post. Once the node is secured just press the on button and the node will start automatically to send the data gathered from the sensors to the Gateway.

Solar powered

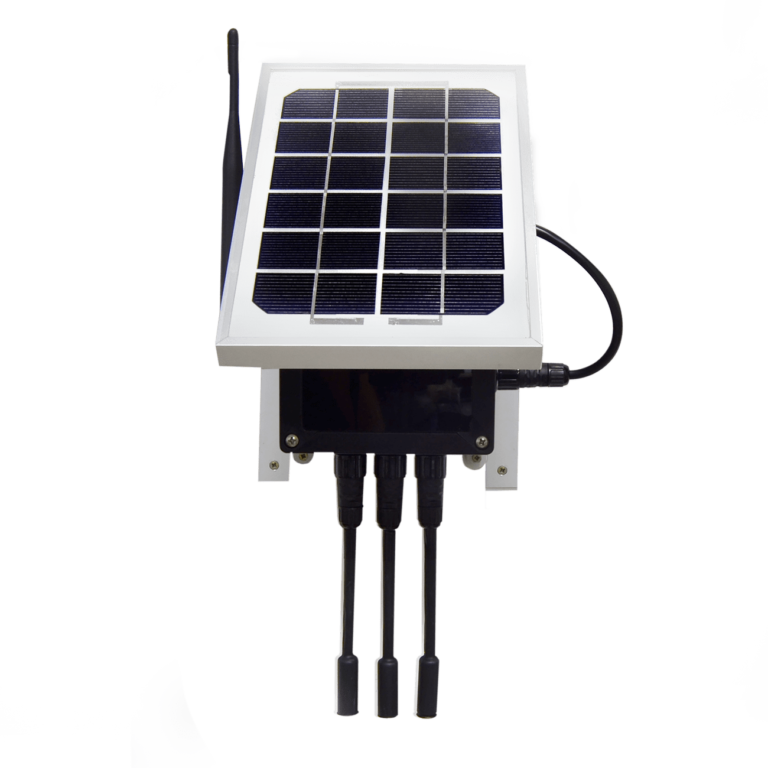

External Solar Panel

The battery can be recharged using the external solar panel option (common USB-recharging is of course another option).

The external solar panel is mounted on a 45º holder which ensures the maximum performance of each outdoor installation.

The rechargeable battery has a capacity of 6600 mA·h, which ensures non-stop operation during the weeks when sunlight is low.

Multiple radio options

High sensitivity and transmission power

There are multiple radio options in order to communicate the sensor nodes with the Gateway. 802.15.4, ZigBee 3, 868 and 900 are commonly used to create local, start topologies. WiFi can be used to connect with any WiFi Access Point, while the 4G radio can be used to send the sensor data directly to the Cloud without using an intermediate Gateway. Sigfox and LoRaWAN modules are designed for IoT applications and get very long range links.

Complete list of available radios:

15.4 (2.4 GHz), 2 versions: Europe and world
ZigBee 3 (2.4 GHz)
RF (868 MHz)
RF (900 MHz), 2 versions: US and Brazil
WiFi (2.4 GHz)
4G, 3 versions: Europe/Brazil, US and Australia
Sigfox, 3 versions: Europe, US and AU / APAC / LATAM
LoRaWAN, 6 versions: Europe, US, Australia, India, ASIA-PAC / LATAM and JP / KR

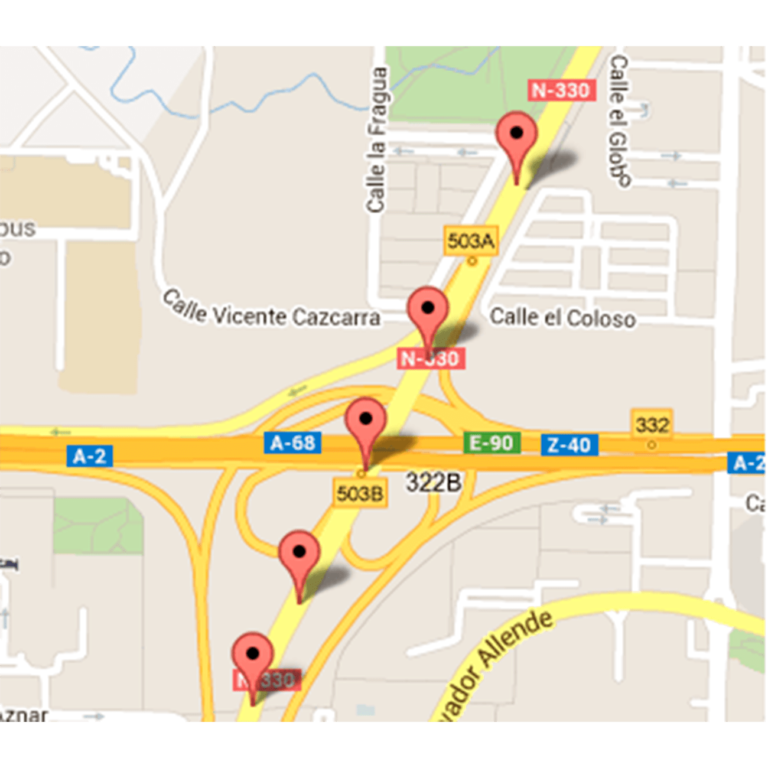

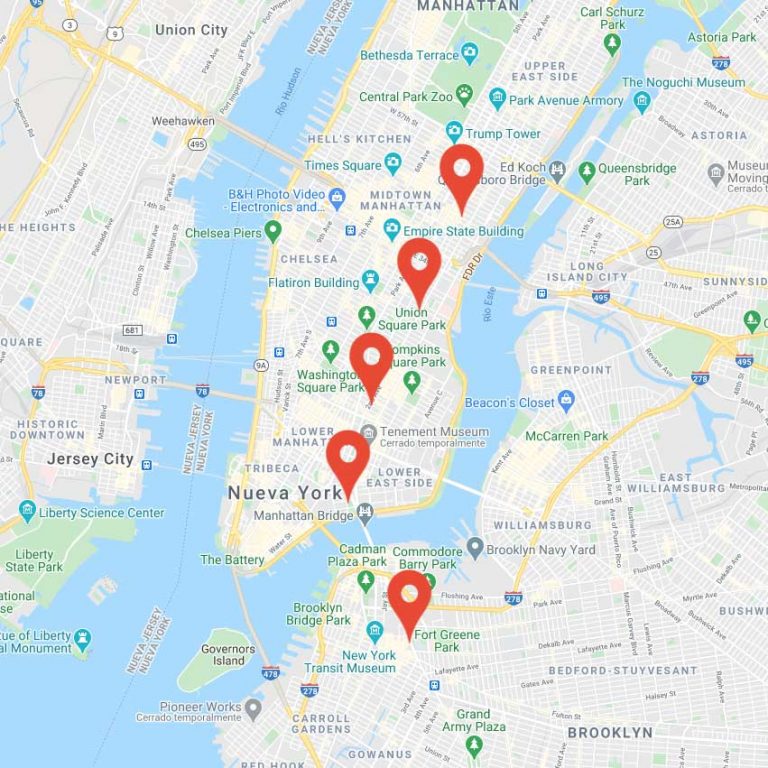

Real time geolocation

Tracking + sensing applications

A dedicated GPS module is available as an accessory, allowing real-time tracking applications.

The idea is simple: read the GPS coordinates (longitude and latitude) and send them by HTTP request to a web server along with extra information from the sensors included in the node. Then use a browser to load the PHP webpage which uses Google Maps to show the location in real-time.

Industrial applications

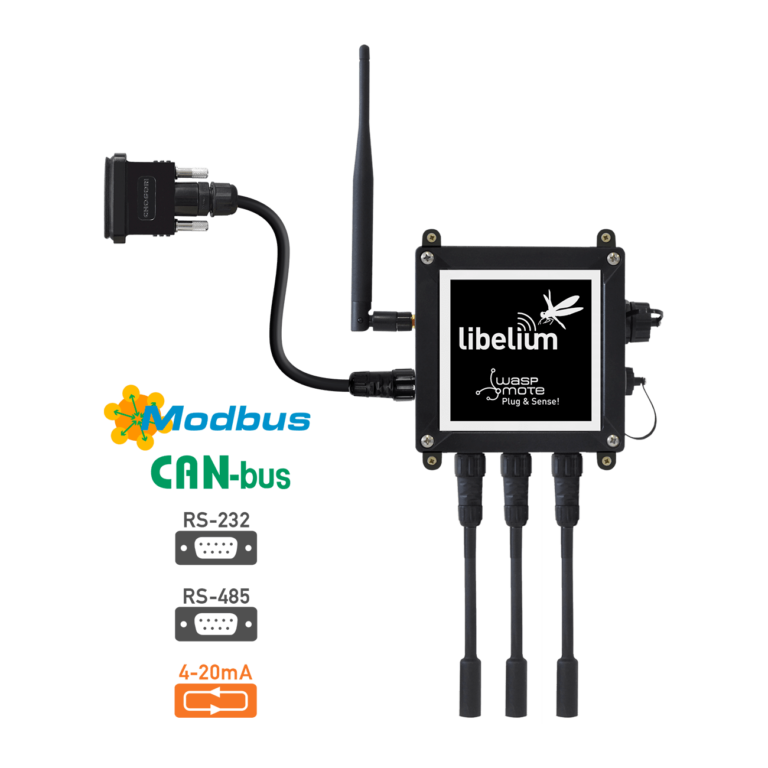

Connect your industrial devices to Plug & Sense!

Plug & Sense! units can connect with most common industrial communication protocols: RS-485, Modbus, 4-20 mA (current loop) and CAN Bus. This feature opens a wide variety of applications for industrial sensing and automation, military, automobile, vehicle tracking or remote factory management.

There are 3 main uses:

Connect any sensor to an existing industrial bus.
Add wireless connectivity to wired buses.
Connect industrial devices to the Cloud

External SIM Socket

Choose your own Mobile Network Operator

Plug & Sense! models with 4G radio have an External SIM socket which allows developers to easily add and change a carrier SIM card in order to connect the devices to any 4G / 3G / GPRS / GSM cellular network.

Worldwide certified

Ready for any market

Plug & Sense! is the first IoT sensor platform to be fully certified:

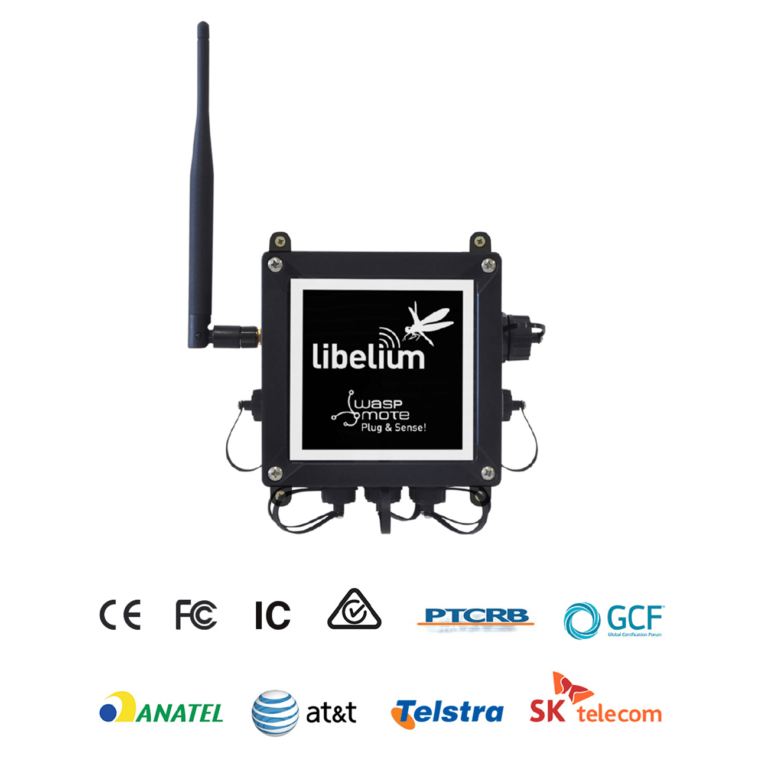

CE (Europe)
FCC (US)
IC (Canada)
ANATEL (Brazil)
RCM (Australia)
PTCRB (cellular certification for US)
AT&T (cellular certification for US)

Certifications

Complete interoperability

Sending data to the cloud

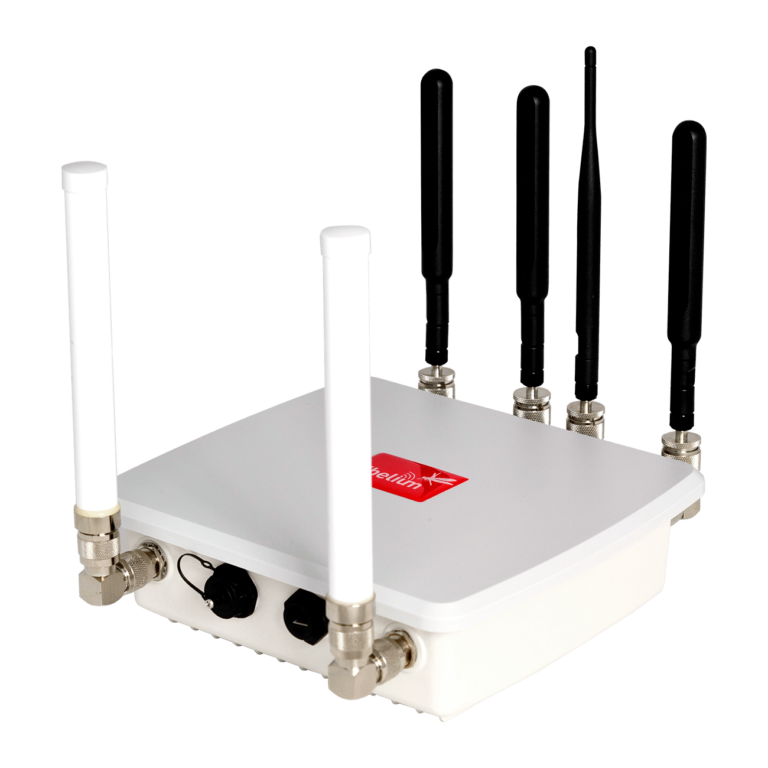

The data gathered by the Waspmote Plug & Sense! nodes can be sent to the Cloud by Meshlium, the IoT Gateway router is specially designed to connect Waspmote sensor networks to the Internet via Ethernet and 4G interfaces.

Meshlium
