IoT Security Infographic – Privacy, Authenticity, Confidentiality and Integrity of the Sensor Data. “The Invisible Asset”

IoT Security Infographic – Privacy, Authenticity, Confidentiality and Integrity of the Sensor Data. “The Invisible Asset”

December 15th, 2015 - Libelium

By David Gascón, CTO of Libelium.

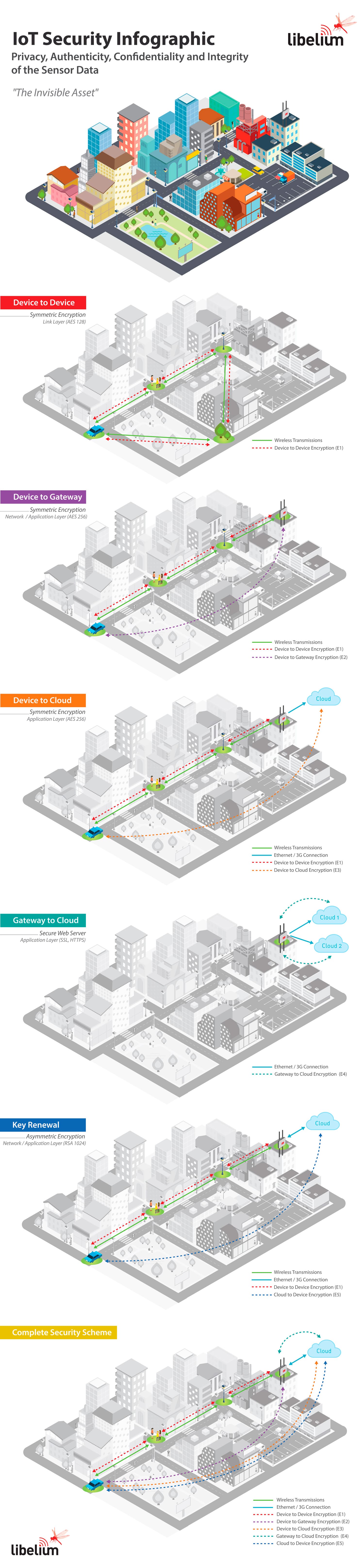

IoT Security Infographic

Security in the IoT is one the main concerns for municipalities as Smart Cities projects start being a reality. In the next article we will expose what is the security proposal developed by Libelium for its sensor devices and gateways: Waspmote, Plug & Sense! and Meshlium

In the current article we get into the four main features of Security:

  • Privacy: ensure that only the desired sensor devices and gateways are part of the network
  • Authenticity: ensure that the supposed sender is the real sender
  • Confidentiality: ensure that the data is only readable by the proposed destination
  • Integrity: ensure that the information contained in the original message is kept intact

IoT Security Infographic

Device to Device (Symmetric Encryption) [Encryption Level 1 - E1]

The end nodes implement a first encryption level at the link layer. All the nodes belonging to the same network share a common pre-shared key. This avoid external devices joining the sensor network (ensuring privacy) or watching the information contained in the packets being sent as it is encrypted (ensuring confidentiality). This encryption process is driven in Waspmote and Plug & Sense! by special electronic hardware included in the radio modules. AES 128b is the most used algorithm in this first layer.

IoT Security Infographic

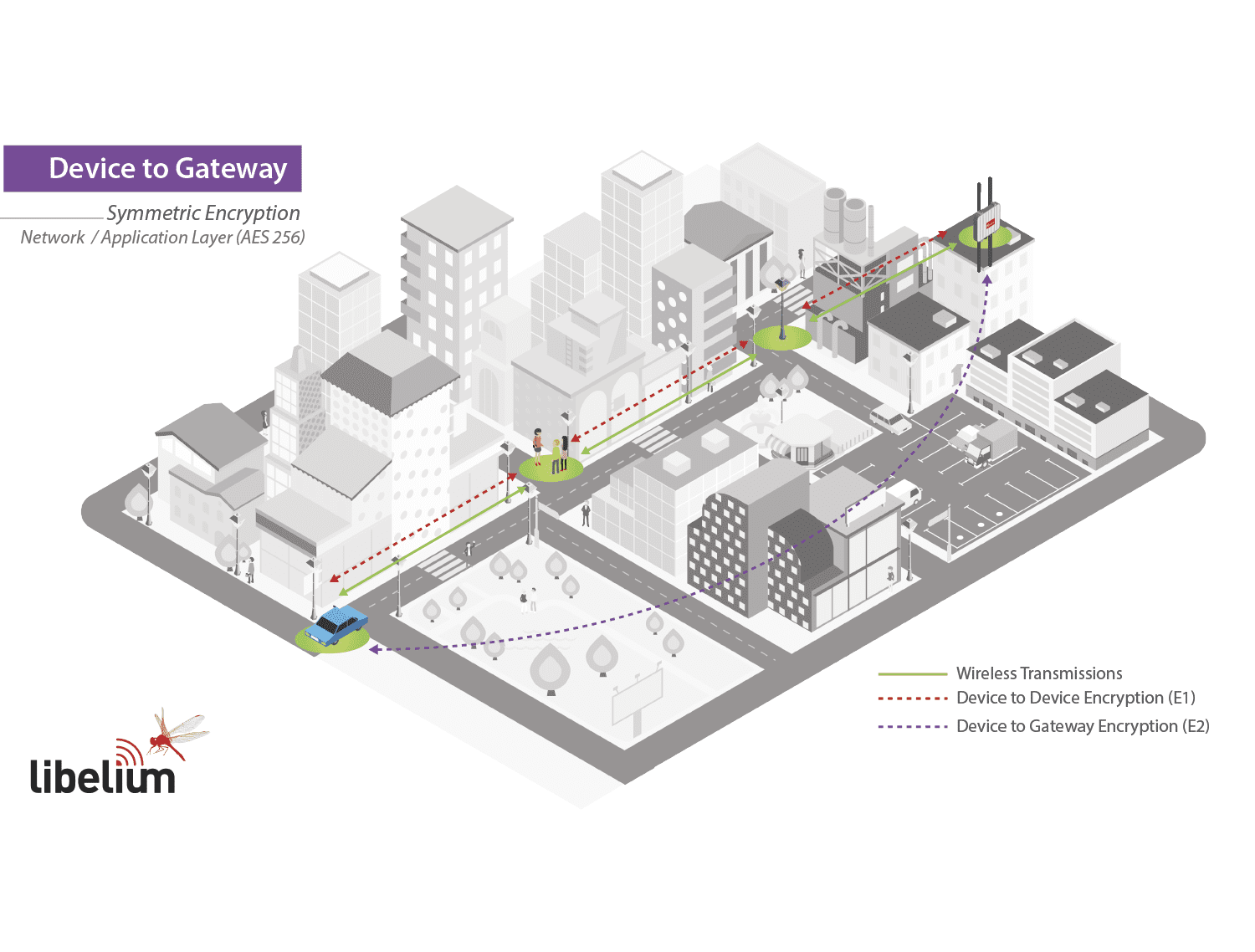

Device to Gateway (Symmetric Encryption) [Encryption Level 2 - E2]

In a Smart City there are many different sensor networks working at the same time, for example we may find the Smart Parking nodes sending data in parallel to the Smart Environment or the Smart Water sensor devices. As all them may share the same E1 key used in the link layer, a new security mechanism is added, this time by using symmetric encryption in the Networking / Application layer – E2.

Now every single node in the network has its own private key (ensuring authenticity) and the Gateway (Meshlium) contains every single key of the devices to be able to decrypt the packets sent. The information goes encrypted from each node to the Gateway so the intermediate nodes can not access to it (ensuring privacy and confidentiality). Adding a sequence number + random internal seed we can perform the checksum to ensure that the data contained has not been altered (ensuring integrity).

The encryption process in Waspmote and Plug & Sense! is driven by software libraries included in the API and run by the MCU. AES 256b is the most used algorithm. Normally it is used in combination with E1 security layer so we get a E1 + E2 security scheme.

iot_security_2_2

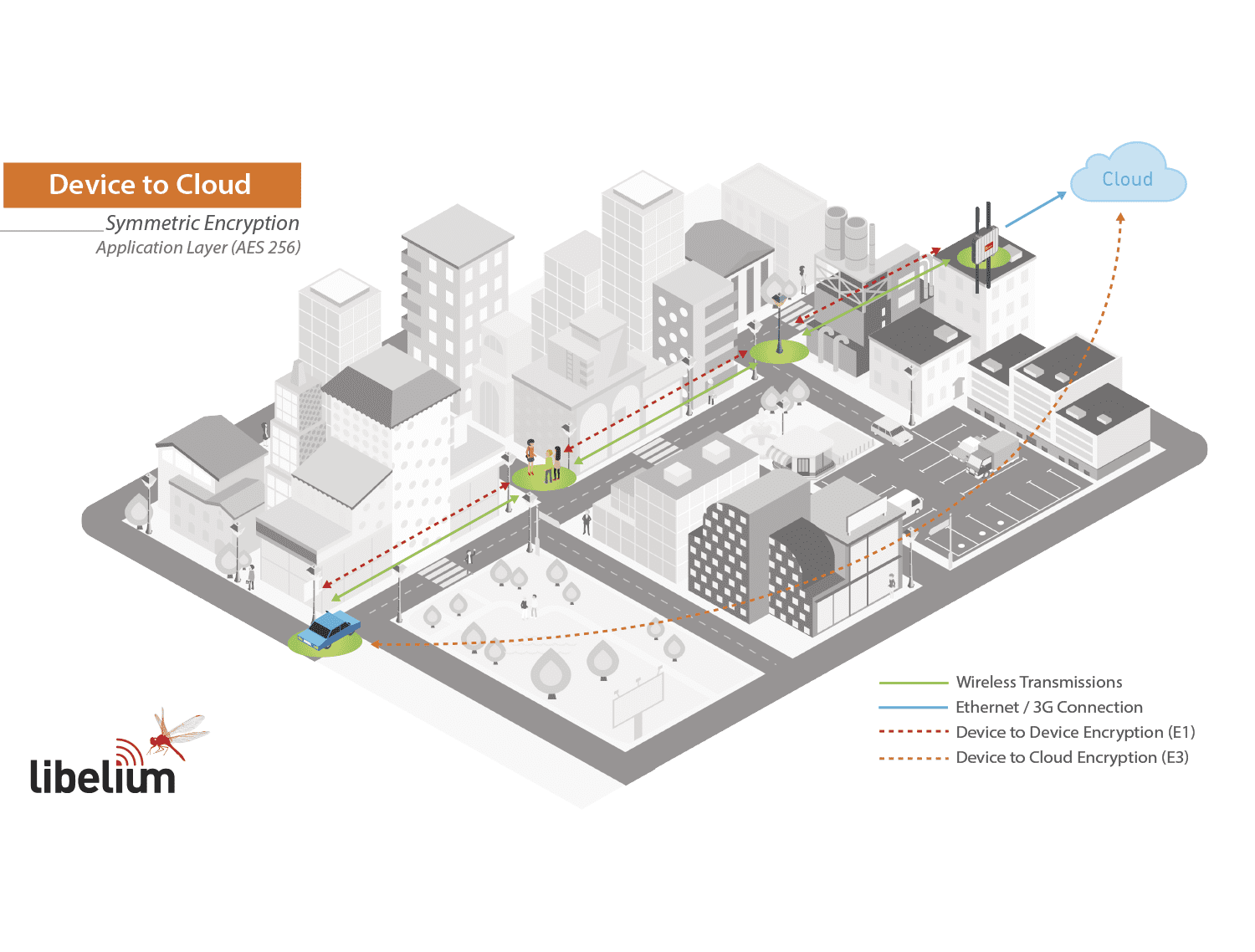

Device to Cloud (Symmetric Encryption) [Encryption Level 3 – E3]

This is similar to E2 but instead of having the keys located in the Gateway they are stored in the Cloud. This allows to use different Gateways (trusted or not trusted) as the information goes encrypted through them.

The encryption process is normally driven by software libraries run by the MCU. AES 256b is the most used algorithm. Normally it is used in combination with E1 so we get a E1 + E3 security scheme. The information goes encrypted from each node to the Gateway so the intermediate nodes or the Gateways can not access to it.

iot_security_3_2

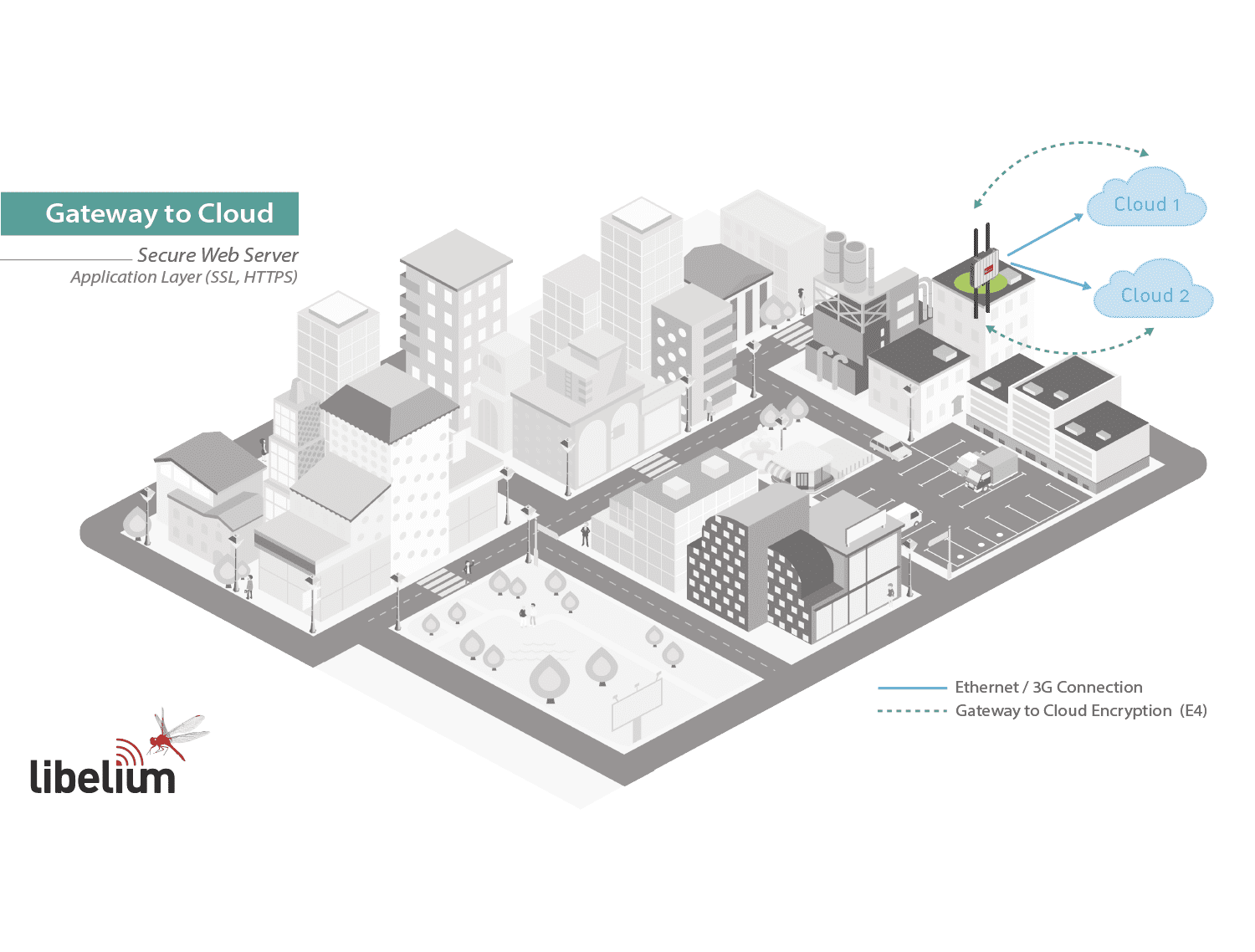

Gateway to Cloud (Secure Web Server – SSL-HTTPS-SSH) [Encryption Level 4 – E4]

The Gateway (Meshlium) use SSL certificates to send the information to the different Cloud Servers. It is the same security scheme as we use with our browsers when we connect to our bank website.

Most common combination scenarios:

  • E1 + E2 + E4
  • E1 + E3 + E4

The most secure scenario would be the one using combination of all of them: E1 + E2 + E3 + E4 although it would reduce the payload (we would be sending less bytes of information per packet).

iot_security_4_2

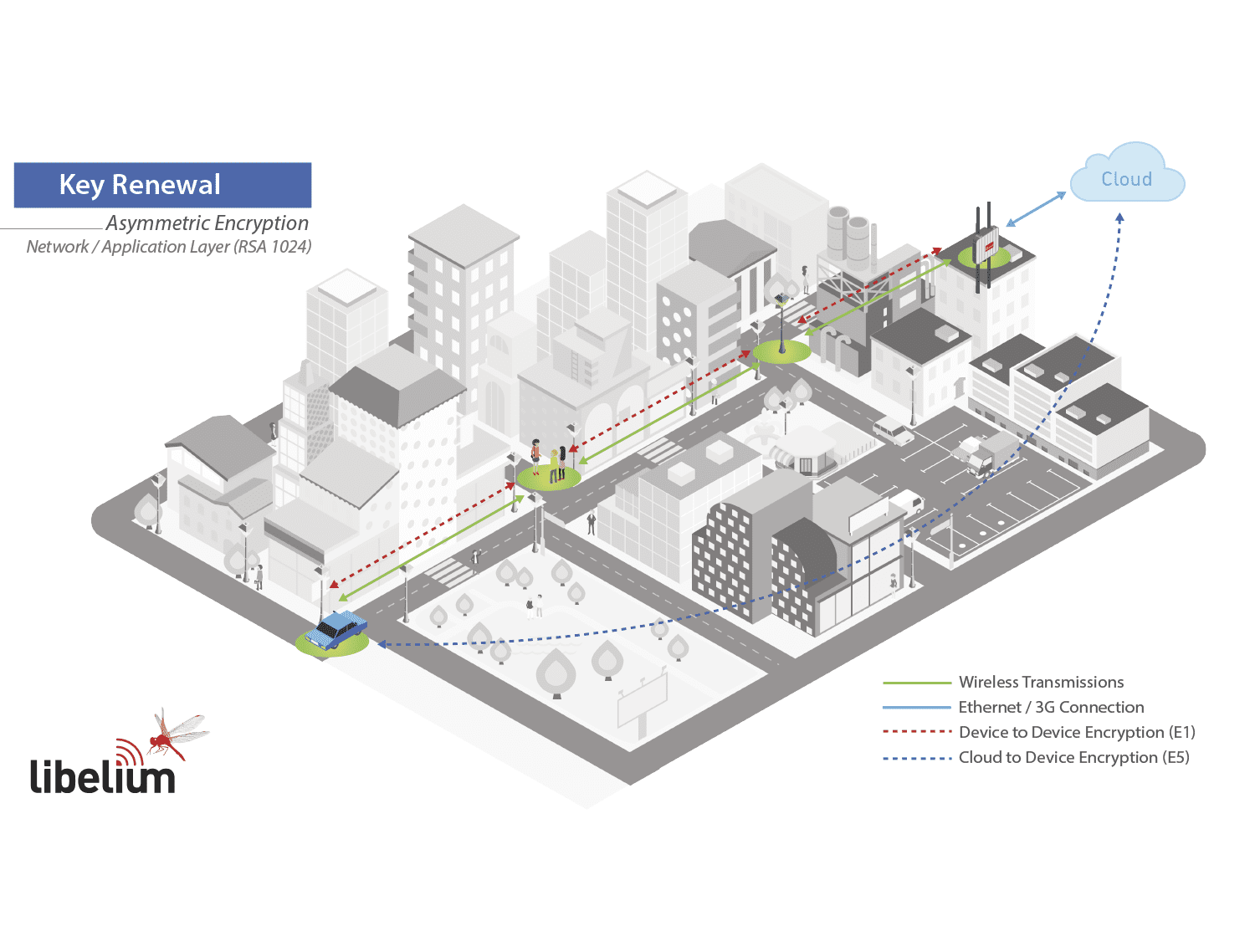

Key Renewal (Asymmetric Encryption) [Encryption Level 5 - E5]

Prior to start with the software encryption with AES 256 we need to share a key between each node (origin) and the Gateway or the Cloud Server (destination). To do so we can encrypt the new key using RSA 1024 using both Public/Private keys. This way, we ensure authentication, confidentiality and message integrity (as we add also a seed along with the key to generate randomness in the packet transmission). Once we get the shared key we will use it to start encrypting the sensor information as seen in the previous diagram as AES it ensures the maximum performance and and minimum message overload.

The same process is done when we want to renew the AES key.

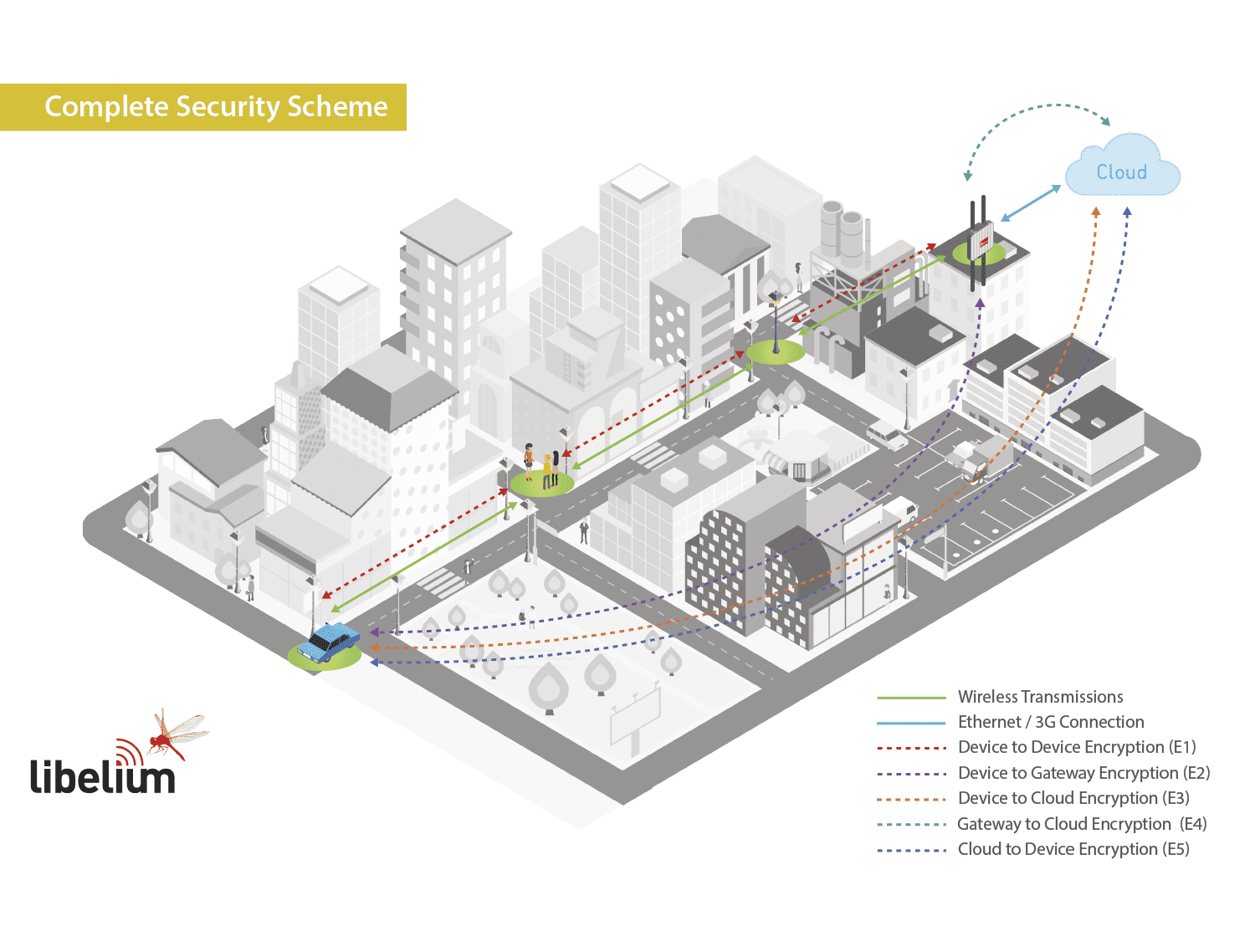

Common security issues solved with these 5 Encryption Levels:

  • Access Control (Privacy)
    By using AES 128 in the link layer we ensure that only nodes with the shared key can access to the routing capabilities of the sensor network. If a strange node sends a message to the network the message will be discharged in the first hop so no extra communication resources will be used. The AES 128 algorithm is implemented in the same radio using specific hardware, for this reason the information will be automatically discarded and not even send to the microcontroller. This provides an extra layer of security as the main control unit of the node will not be interrupted from performing basic tasks or event not awaken from the sleep mode (what ensures optimum energy usage).
  • Authentication
    By using its own private keys (AES / RSA) each node ensures the authenticity of the of origin. The Gateway or the Cloud may store all the public and shared keys of the devices so that they can check the packet has been sent by the supposed origin.
  • Data Confidentiality
    By doubling encryption of the messages we ensure that first that only the nodes which form part of the network can see the general routing packets (AES 128 in the link layer) and after that we establish an encryption tunnel by direct P2P encryption between origin and destination (using AES 256).
  • Data Integrity
    The new library uses hash algorithms such as MD5 and SHA to create the checksum of the message and to ensure that the final information received correspond with the original sent.
  • Data Freshness (avoiding packet injection)
    Each packet has an exclusive seed which protects the gateway from receiving several identical packets which could be injected from a third party.
  • Non-repudation
    By signing the messages with RSA keys we have also the legal proof that the information sent really was sent by an specific sensor node and not by other. Important in the future when all the sensitive sensor information has to be legally approved.

iot_security_6_2

To know more about the Encryption Libraries implemented by Libelium go to:
http://www.libelium.com/products/waspmote/encryption

For more information about our products go to:
– Gateway (Meshlium): http://www.libelium.com/products/meshlium/
– Waspmote: http://www.libelium.com/products/waspmote/
– Plug & Sense!: http://www.libelium.com/products/plug-sense/

Or ask to our Sales Team at:
http://www.libelium.com/contact/

Author: David Gascón, CTO of Libelium.
