In response to citizen demand and driven by three main aspects of governance, a new concept for cities is taking hold to offer a better quality of life to citizens, minimize environmental impact, and reduce costs. The Parking scenario is one of the most important problems present in a city that involves all three factors.  Throughout the world, atmospheric pollution and congested roads depreciate the quality of life, resulting in lost time for drivers and wasted fuel. The European Commission estimates that economic losses due to traffic delays total €150 billion per year in Europe. The need to search for available parking spaces is a significant contributor to widespread congestion and a major cause of stress for motorists. Based on calculations in Barcelona, Spain, a million drivers spend an average of 20 minutes every day looking for a parking spot, producing 2,400 tons of CO2 emissions. Smart Santander Project SMART SANTANDER project, which has been developed by several companies and institutions including Telefonica I+D and University of Cantabria, aims at designing, deploying and validating in Santander and its environment a platform composed of sensors, actuators, cameras and screens to offer useful information to citizens. 1125 Waspmotes  have been deployed to monitor different parameters such as noise, temperature, luminosity, CO and free parking slots.

Fig. 1. – SmartSantander location

Unique in the world, SmartSantander is really a city-scale experimental research facility in support of typical applications and services for future Smart Cities. This exceptional experimental facility is sufficiently large, open and flexible to enable horizontal and vertical federation with other experimental facilities, and to stimulate development of new applications by various types of users including experimental advanced research on Internet of Things (IoT) technologies, based on the realistic assessment of users’ acceptability tests. The project envisions the deployment of 20,000 sensors in the European cities of Belgrade, Guildford, Lübeck and Santander (12,000), exploiting a large range of technologies. Within this article we will focus on Santander deployment. If you want to know more about Belgrade deployment, please visit this case study. The Solution This project can be better explained with the following diagram, showing the nodes, the networks created and their connection to the cloud. One of the main challenges we encountered during the SmartSantander project was the Over-the-Air-Programming (OTAP) development needed to program all the nodes wirelessly and remotely. Libelium collaborated with the University of Cantabria to improve the OTAP system, creating a more robust network that can be upgraded at any time from any place. In this project 1,125 Waspmotes were deployed in different locations within the city of Santander, to measure five different parameters:

• Temperature
• Luminosity
• CO
• Noise
• Free Parking Slots

These five sensors are connected to Waspmote through the Gases Sensor Board (CO sensor), Parking Sensor Board (parking), Smart Cities Sensor Board (noise sensor) or directly to Waspmote (temperature and luminosity).

Each sensor has two radios for communicating at 2.4GHz (except for the parking sensors). On one end of the communication, DigiMesh is the protocol selected to send the environmental information. On the other hand, IEEE 802.15.4 protocol is used to carry out experiments within the network. All the nodes within the SmartSantander network can be used to test new algorithms without any downtime, while citizens still receive information about their environment. If any of these five parameters goes above a certain threshold, the system analyzes the information and may react by sending an alarm to the central node (the wireless gateway, Meshlium, in this case). To know where a sensor is located, each Waspmote can integrate a global positioning system (GPS) that delivers accurate position and time information. Libelium offers several wireless modules for the radio communication:

Model	Protocol	Frequency	TX power	Sensitivity	Range*
XBee-802.15.4	802.15.4	2.4 GHz	1 mW	-92 dB	500 m
XBee-802.15.4-Pro	802.15.4	2.4 GHz	63 mW	-100 dBm	7000 m
XBee-ZigBee	Zigbee-Pro	2.4 GHz	2 mW	-96 dBm	500 m
XBee-ZigBee-Pro	Zigbee-Pro	2.4 GHz	50 mW	-102 dBm	7000 m
XBee-868	RF	868 MHz	315 mW	-112 dBm	12 km
XBee-900	RF	900 MHz	50 mW	-100 dBm	10 km
XBee-XSC	RF	900 MHz	100 mW	-106 dBm	12 km

Fig. 4. – Distance reached depending on the protocol

We can reach up 40 km with Line of Sight (LOS) conditions using the 868MHz module. The high performance of Waspmote makes the readings really accurate and the transmission is highly reliable and flexible, placing the nodes at an average separation of 1,5 km. It is also possible to transmit the data via GPRS/3G, as a secondary radio module for better availability and redundancy in situations when it is critical to ensure that the message is received, as for fire alarms. Because the GPRS/3G module is quad-band it can operate in four different frequency bands and  supports any cellular connection provider, making it able to work all over the world. In this way, the project we are describing is suitable for any country. One of the main characteristics of Waspmote is its low power consumption:

• 9 mA, ON mode
• 62 μA, sleep mode
• 0,7 μA, hibernate mode

Waspmote is sleeping most of the time, in order to save battery. After some minutes (programmable by the user), Waspmote wakes up, reads from the sensors, implements the wireless communication and goes again to sleep mode. Deployment process Deployment of the wireless sensor network was carried out by IDOM and TTI Norte, two Spanish companies specialized in telecommunications and engineering. First, a coverage study was done to know where to place sensors and repeaters to maximize the area covered by the project. The coverage study divided the city in 22 different zones. Each zone had a Meshlium wireless gateway to gather the data from the sensors: the number of sensors depended on the area to cover. The process involved deploying zone by zone, to create independent networks that work on different frequency channels without any interference from one another. First, the sensors were calibrated to check that their output was accurate. Once they had been calibrated, they were randomly tested to pass Libelium’s quality control. Each node was placed within an IP-65 box that could be deployed under the harsh conditions of the city of Santander. The sensors were placed on light lamps or building fronts, trying to minimize the visual impact on the city. Each box contains the electrical equipment necessary to be connected to light lamps without any danger to public installations. They are connected to the line through residual current circuit breakers and fuses to avoid electrical problems. A transformer adapts the current and voltage to power the nodes. On the other hand, Waspmotes were deployed in different locations within the city of Santander, measuring magnetic field to detect whether a parking slot is free. Magnetic field sensor is connected to Waspmote through the Smart Parking Sensor Board. These sensors detect the variation of the magnetic field generated by a car parked on it. To do that, the sensor is buried under the surface of the road inside a waterproof casing. The hole is closed using a specific material and it is barely detectable at a glance.

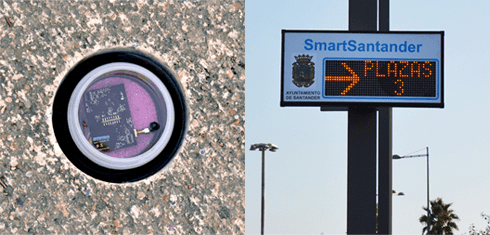

Fig. 8. – a) Waspmotes buried under the road surface b) Displays to show free parking spots

Each Meshlium gathers the data from all the sensors within its zone, stores the data in a MySQL database and sends the information to the Internet through a 3G or Ethernet connection. Meshliums are placed on the top of buildings to maximize the area covered. As a result of this installation, environmental parameters can be monitored for further study and citizens can also know them thanks to real-time maps available for viewing. Furthermore, the SmartSantander project is a large-scale network for experimentation that allows researchers from all over the world to test different algorithms in a real environment. If you are interested in Waspmote, we will be glad to help you to design your system. You can request for a quotation of Waspmote here.
